Contracor BlastRazor Z-200 Blast Pot

€2.354,10  incl. VAT

Configuration


   Shipping

Shipping in around 1-2 weeks

Business orders?

You can easily place business orders at Reemster. On the cart page, select "business" and automatically enjoy the following benefits:

  • Fast delivery: Quick and reliable shipping with track & trace.
  • Personal service: Access to our business customer service.
  • Volume discount: Discounts on bulk orders are automatically applied to your cart.
  • Invoice: Clear and itemized VAT invoice, optionally with your own reference number.
  • VAT reverse charge: Do you have a VAT number? Enter your VAT number on the cart page. Our systems will verify the VAT number and apply 0% VAT at checkout if the number is valid.

Questions about business orders? Contact us.

The Contracor BlastRazor Z-200 abrasive blast pot is a high-performance, 200 liter capacity unit designed to work with any dry abrasives with a maximum grain size of 4mm. The BlastRazor's unique design allows for superior performance and durability, making it the perfect choice for any serious professional. With its ability to quickly and effectively remove paint, rust, scale, and other contaminants, the BlastRazor is perfect for a wide variety of applications including prepping surfaces for painting, removing graffiti, or cleaning industrial equipment. So if you're looking for an affordable abrasive blast pot consider this Contracor BlastRazor Z-200.

Technical data

Max. working pressure, bar 10
Vessel capacity, liter 200
Working temperature,°С -10 / +50
Vessel diameter, mm 609
Vessel height, mm 1480
Weight, kg 135 Z-200 / 140 Z-200RC(S)


Compressed air consumption (m³/min)

Nozzle diameter Abrasive blasting Plus blast helmet Plus 50% reserve Minimum air input
6.5 mm 2.3 0.5 1.4 4.2
8.0 mm 3.9 0.5 2.2 6.6
9.5 mm 5.5 0.5 3.0 9.0
11.0 mm 7.2 0.5 3.9 11.6
12.5 mm 9.6 0.5 5.0 16.1


Table of performance

Nozzle diameter, mm: 6.5 8 9.5 11 12.5
Compressed air output, m³/min., at 8 bar pressure 4.2 6.6 9 11.6 16.1
Average output, m²/h SA 2 10 15 21 28 37
Average output, m²/h SA 2,5 5 9 14 21 28
Average output, m²/h SA 3 4 6 9 13 17
Average abrasive consumption kg/m SA 2 40 35 32 29 28
Average abrasive consumption kg/m SA 2,5 58 51 46 42 40
Average abrasive consumption kg/m SA 3 78 68 62 56 54

Blastrazor Z-200
  • 200 liter capacity tank
  • Screen
  • Cap
  • Sand valve
  • High-performance moisture separator
  • Inspection hatch

Blastrazor Z-200RC (with remote control)

Blastrazor Z-200RCS (with remote control and SGV valve)

  • 200 liter capacity tank
  • Screen
  • Cap
  • SGV valve (for precise metering of heavy or aggressive abrasives, such as steel grit and grains or aluminium oxide)
  • High-performance moisture separator
  • Inspection hatch
  • Remote control device with a pneumatically-operated RC main valve
  • Deadman control handle
  • 20 meter twin-line hose with hose fittings

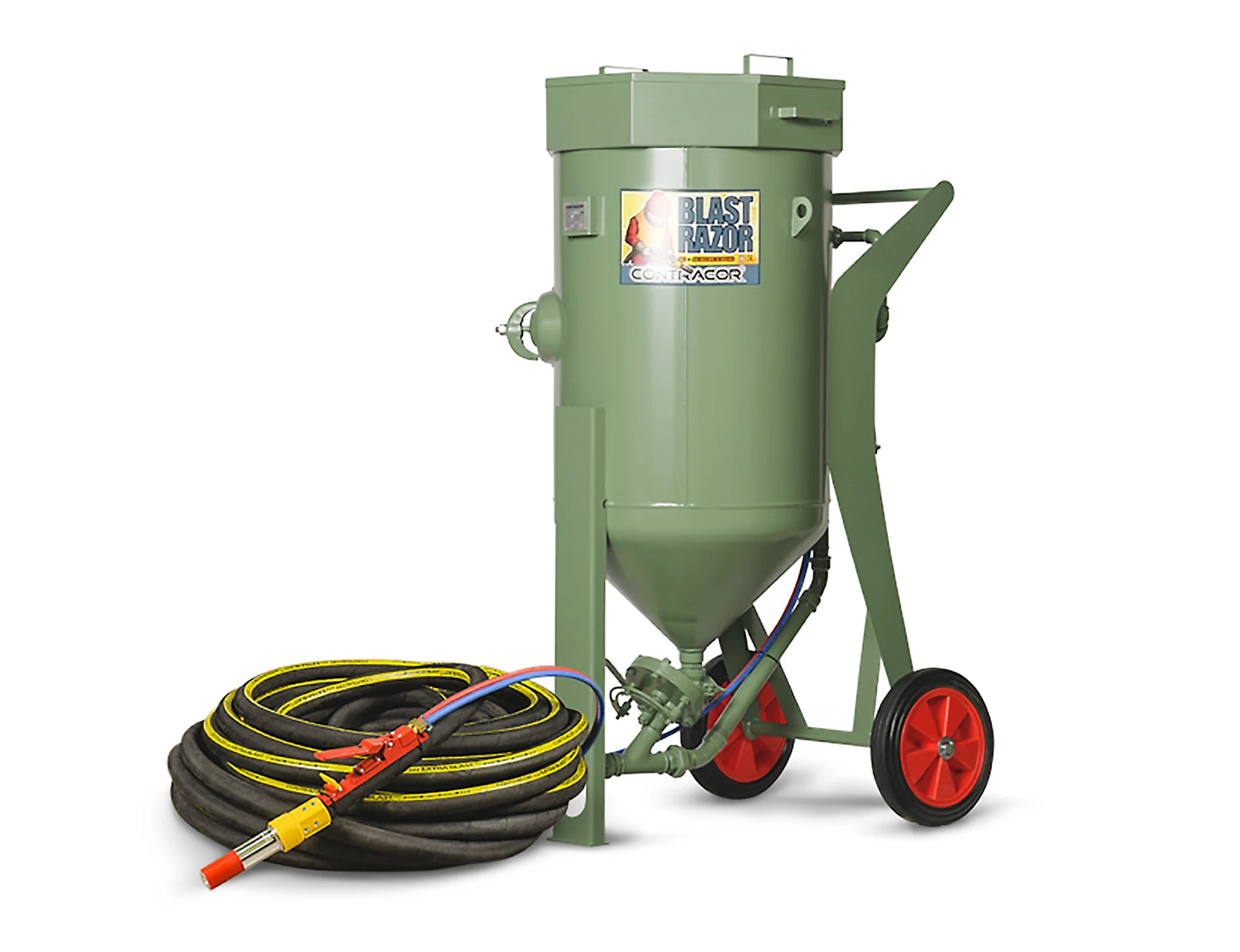

BlastPack-200
This blasting package contains everything you need to get started with Contracor blasting equipment.

If you are going to use aggressive abrasives such as corundum, ceramic, silicon carbide or steel grit, we recommend using a BlastRazor -RCS version.
